Mason Industries is konwn throughout our industry as one of the pioneers of the Vibration Isolation market. Through relentless product testing and development we are able to provide a reliable and time tested product that is backed by the Mason Industries brand.



Our Engineering department will work tirelessly to provide signed and sealed calculations along with layout drawings and specifications for any of your projects.



We offer our thanks to every contractor and manufacturer who forms our customer base. We believe they favor us because of the practicality of our designs and lower installed cost when product works the first time. We stand behind what we sell as no other competitor. We thank our whole representative organization for their hard work, professionalism, integrity and loyalty. We look forward to serving you. Diversified Fluid Controls is proud to be the exclusive representative for Mason Industries here in South Florida.

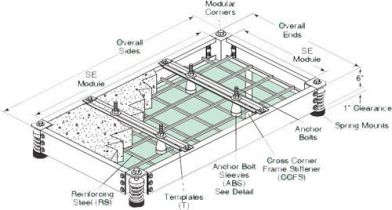

Mason Industries Inertia Pump Base

Pump Inertia Bases

Models: BMK, MSL, WFSL, MC, GSSL, WFC


Vibration isolation manufacturer shall furnish integral structural steel bases. Rectangular bases are preferred for all equipment. Centrifugal refrigeration machines and pump bases may be T or L shaped. Pump bases for split case pumps shall be large enough to support suction and discharge elbows. All perimeter members shall be steel beams with a minimum depth equal to 1/10 of the longest dimension of the base. Base depth need not exceed 14”(350mm) provided that the deflection and misalignment is kept within acceptable limits as determined by the manufacturer. Height saving brackets shall be employed in all mounting locations to provide a base clearance of 1” (25mm). Bases shall be type bmk as manufactured by Mason Industries, Inc.

REQUEST more information

Mason Industries Centrifugal Fan Base

Centrifugal Fan Bases

Models: BMK, MSL, WFSL, MC, GSSL, WFC


Vibration isolation manufacturer shall furnish integral structural steel bases. Rectangular bases are preferred for all equipment. Centrifugal refrigeration machines and pump bases may be T or L shaped. Pump bases for split case pumps shall be large enough to support suction and discharge elbows. All perimeter members shall be steel beams with a minimum depth equal to 1/10 of the longest dimension of the base. Base depth need not exceed 14”(350mm) provided that the deflection and misalignment is kept within acceptable limits as determined by the manufacturer. Height saving brackets shall be employed in all mounting locations to provide a base clearance of 1” (25mm). Bases shall be type bmk as manufactured by Mason Industries, Inc.

REQUEST more information


Mason Industries Curbs and Rails

Curbs & Rails

Models: RND, RSL, RC, ICS'


Type RND rails are structural steel channels furnished with double deflection neoprene mountings bolted to the web. All metal mounting parts are neoprene covered to avoid corrosion and provide a bottom friction surface. They need not be bolted to the floor but bolt holes are provided for those areas where bolting down is specified. RND rails are used to extend equipment bases, eliminating over-hand and improving weight distribution on the mountings as in the case of close coupled pumps or utility sets. They may also be used to reinforce bases that require supplementary stiffening between mounting locations.

REQUEST A QUOTE
