Taco Comfort Solutions

Taco Pumps and Circulators

From its manufacturing headquarters in Cranston, Rhode Island and a fabrication facility in Fall River, Massachusetts, Taco Comfort Solutions® develops and manufactures products and systems for both residential and commercial applications. These include circulators/pumps, valves and controls, air-dirt separators, heat exchangers, buffer and expansion tanks, domestic hot water recirculation and accessory products, and sophisticated building management controls.



Diversified Fluid Controls has the largest inventory in South Florida of Commerical HVAC Pumps & Circulators. We keep many of the below models in stock here in Fort Lauderdale for fast service and quick delivery. We can also deliver to Palm Beach and Miami-Dade County same day! Call today to see if the model you need is in stock.


Need help selecting the correct pump? Try using our Pump Selector


Commercial Pumps

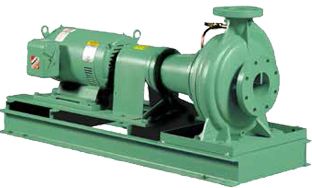

FI Series



Taco FI Series End Suction Pumps provide quiet, dependable power plus hydraulic performance and dimensional characteristics that meet the very latest standards. The improved bearing frame design features sealed-for-life bearings that meet all industry requirements for a minimum L 10 life of 60,000 hours, and optional, re-grease able bearings are also available. An easy-to-replace, slip-on shaft sleeve facilitates seal maintenance in the field and lowers maintenance costs. Taco’s exclusive dry shaft design protects the pump shaft by eliminating contact with the circulating fluid, so corrosion-resistant shaft materials are generally not required. This pump is also available in our Self-Sensing Model SFI



Performance Data:

  • GPM: 40 - 4,400
  • Head (ft): 1 - 390
  • HP: 1/2- 150
  • Sizes (in): 1-1/2 - 8



*Typical Stock Item

request more information

Taco Closed Couple End Suction Pump

CI Series

Taco CI Series End Suction Pump Pumps provide the ultimate in reliability and ease of installation for heating, air conditioning, pressure boosting, cooling water transfer, and water supply applications. An easy-to-replace, slip-on shaft sleeve facilitates seal maintenance in the field and lowers maintenance costs. Taco's exclusive dry shaft design protects the pump shaft by eliminating contact with the circulating fluid, so corrosion-resistant shaft materials are generally not required. CI Pumps also feature flush seal line taps, allowing the installation of a filter to protect the seal from non-condensable particles present in open systems. In addition, pressure tappings on suction and discharge connections are provided as a standard feature.This pump is also available in our Self-Sensing Model SKS



Performance Data:

  • Flow (GPM): 0-2500
  • Head (ft): 0-181
  • HP: 1/2 - 50
  • Sizes(in.): 1-1/2 – 8



*Typical Stock Item

request more information

Taco Vertical Inline Split Coupled Pump

KS Series

Taco KS Series Vertical Split-Coupled In-Line Pumps are designed for optimum performance, easy installation and simplified maintenance. The split coupled design enables you to change the seal without disturbing the motor or piping. The axial load is hydraulically balanced to increase bearing life, deliver better pump efficiencies and lower NPSH requirements. They're ideal for HVAC and Industrial application and Domestic Water Service flows to 2500 GPM.



Performance Data:

  • GPM: 40 - 12,000

  • Head (ft): 10 - 380

  • HP: 3/4 - 600

  • Sizes: 1-1/2-14

request more information


Taco Vertical Inline Closed Couple Pump

KV Series

Taco KV Vertical In-Line Pumps are designed for optimum performance and ease of installation. The close-coupled design results in improved alignment and increased seal life. They require no isolation pads and their simplified, in-line design save you time and money. Service, if ever needed, is easy because KV Pumps pull out from the back and you don't need to disconnect the pump from the piping system. This pump is also available in our Self-Sensing Model SKV



Performance Data:

  • GPM: 10 - 2,650
  • Head (ft): 11 - 385
  • HP: 3/4 - 60
  • Sizes (in): 1-1/2 - 8



*Typical Stock Item

request more information

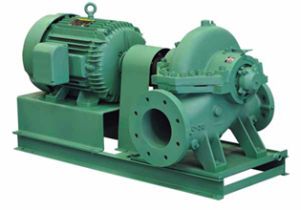

Taco Horizontal Split Case Pump

TA Series

Taco’s TA Series Split Case Pumps are a major advance in pump design. By using a new, modular construction technique, Taco can now make available pump performance from 60 GPM to 6,000 GPM from just three basic bearing and shaft modules. This modular construction gives you multiple seal and construction options for application flexibility, simplified maintenance and the design flexibility to accommodate future performance needs.



Performance Data:

  • GPM: 101 - 5805
  • Head (ft): 11 - 385
  • HP: 1 - 450
  • Sizes (in): 2 - 10

request more information

Taco Horizontal Split Case Pump

GT Series

GT Series Pumps provide the ultimate in reliability and ease of installation for heating, air conditioning, pressure boosting, cooling water transfer, and water supply applications. Quiet, dependable and proven performance: that's the GT Series.



Performance Data:

  • GPM: 1,167 - 19,150
  • Head (ft): 18 - 427
  • HP: 30 - 1,500
  • Sizes (in): 10 - 18

request more information


Taco Vertical Split Case Pump

TC Series

TC Series Pumps provide the ultimate in reliability and ease of installation for heating, air conditioning, pressure boosting, cooling water transfer, and water supply applications. The TC Series' top suction and discharge make this product line the ideal choice for minimizing your installation footprint.



Performance Data:

  • GPM: 100 - 11,000

  • Head (ft): 15 - 500

  • HP: 1 - 800

  • Sizes: 3 – 14

request more information

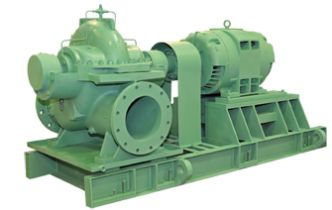

Taco Horizontal Split Case Pump

TS Series

Taco TS Series Pumps provide the ultimate in reliability and ease of installation for heating, air conditioning, pressure boosting, cooling water transfer, and water supply applications. The TS Series' side inlet connection and top outlet connection make this product line an ideal choice for minimizing your installation footprint.



Performance Data:

  • GPM: 100 - 11,000
  • Head (ft): 15 - 500
  • HP: 1 - 800
  • Sizes (in): 3 - 14

request more information

Taco Vertical Turbine Pump

VT Series

Taco VT Series Pumps provide the ultimate in reliability and ease of installation in applications including condenser water, chilled water, water transfer, pressure boosting and water supply. Quiet, dependable, with proven performance, that's the Taco VT Series of pumps.



Performance Data:

  • GPM: 75 - 9000
  • Head (ft): 6 - 270
  • HP: 5 - 100
  • Sizes (in): 4 - 24

request more information


Boiler Pumps

Taco 1900 Series Pump

1900 Series

The Taco 1900 Series Close-Coupled In-Line Pumps are designed to be energy efficient and fit anywhere in the piping layout. The 1900 Series is self supported by the piping and can be installed horizontally or vertically. The pump and sealed ball bearing motor are maintenance free. Rear pull-out design and standard motor simplify servicing and a single seal and shaft sleeve fits all models. This pump is also available with a pump mounted VFD!



Performance Data:

  • GPM: 7 - 280

  • Head (ft): 6 - 164

  • HP: 1/4 - 7-1/2

  • Sizes (in): 1-1/2



*Typical Stock Item

REQUEST more information

Taco 1600 Series Pump

1600 Series

Taco 1600 Series In-Line Pumps feature a replaceable, permanently-lubricated bearing cartridge. The exclusive 1600 cool-bearing cartridge design isolates the bearing from the effects of system temperatures to greatly extend bearing life. A standard bearing design also means that a single bearing cartridge can be used to service the entire line, making servicing a snap. Taco 1600 Series pumps are available in 15 models ranging in performance capacity from 10 GPM to 235 GPM with head capacities up to 68 ft.



Performance Data:

  • GPM: 7 - 230

  • Head (ft): 6 - 64

  • HP: 1/4 - 3

  • Sizes (in): 1-1/2



*Typical Stock Item

request more information

Taco 1915e Pump

1915e Series

The ECM 1915e is a self-sensing, close coupled, mechanically sealed in-line pump that exceeds industry and efficiency standards with an advanced hydraulic design. It features a high-efficiency volute, ECM motor and integrated frequency drive. Simple yet versatile control options include constant pressure, constant speed, proportional pressure, 0-10Vdc and parallel pump alternation. These standard features combined with the intuitive user interface allow for quick start-ups achieving optimum system efficiency and maximum comfort. The 1915e is available in Cast Iron for closed loop hydronic heating and cooling systems or Stainless Steel, NSF Commercial Hot Certified for DHW applications.



Performance Data:

  • Max. Shut-off Head: 65 feet

  • Max. Flow: 120 USGPM



*Typical Stock Item

request more information


Taco 2400 Series Pump

2400 Series

Taco 2400 Series High Capacity Circulators are specifically designed for quiet, efficient, dependable operation in a wide range of medium to high flow/head hydronic heating, chilled water cooling and hot water recirculation applications. The space saving, close-coupled, maintenance free motor with permanently lubricated, sealed-for-life bearings, stainless steel shaft, Noryl® impeller and durable, carbon/silicon-carbide mechanical seal provide unmatched reliability. Available in Cast Iron or Stainless Steel construction.



Performance Data:

  • GPM: 90

  • Head (ft): 46

  • HP: 1/2, 1/3, 1/6, 1/10

  • Sizes (in): 6



*Typical Stock Item

REQUEST more information

Taco 100 Series Pump

100 Series

Proven Performance — The Red Baron Circulators are backed by over 45 years of Taco experience in design and manufacture of standard circulators. Millions of 110s are in service — the 110 Red Baron is Taco’s most popular residential seal-type circulator. Dependable — Quiet Operation — The Red Barons offer quiet, dependable pumping power and long-lasting performance. These dependable circulators are standard equipment on many OEM boilers.



Performance Data:

  • GPM: 0-68
  • Head (ft): 22
  • HP: 1/12, 1/8, 1/6, 1/3
  • Sizes (in): 14-5/8, 16-1/4, 16-1/2, 16-7/8



*Typical Stock Item

REQUEST more information


Residential Circulators

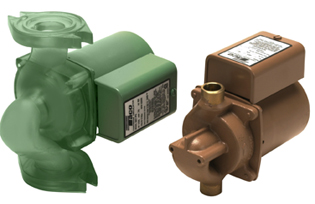

Taco Cartridge Circulator

00 Series

With their self-lubricating design and no mechanical seal, Taco 00® Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 and 00 IFC® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. Their wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications. Also available in Variable Speed and ECM options



Performance Data:

  • Flow (GPM): 0 - 52

  • Head: 0 - 32

  • HP: 1/40 - 1/8

  • Sizes: 1/2 & 3/4



*Typical Stock Item

REQUEST more information
