Barnes & Deming

SEWAGE & WASTEWATER

• Models, 3SC, 3XSC, 4SC, 4XSC, 6SC, 6XSC, 8SC, 8XSC, 10SC, 10XSC
• Flows to 5000 gpm
• Heads to 200 ft

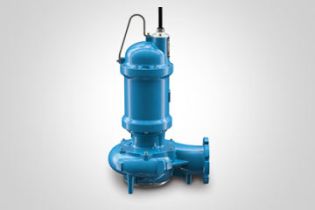

SITHE chopper pumps solve clogging with an innovative, unique, first-of-its-kind, patented chopping technology that slices even the most troublesome solids in waste water. SITHE chopper pumps easily chop and pass solids like plastic bottles, wipes, mop heads, rags, nylon rods, wood dowels, baseballs, pillows, glass, and literally any solid in the waste stream.

PRESSURE SEWER & WASTEWATER

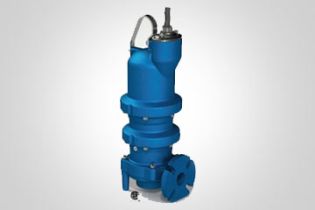

• Models: XGV, NGV, XGVHH, NGVHH
• Flows to 155 gpm
• Heads to 242 ft

BLADE Grinder pumps are the Barnes solution to high head high flow waste water grinding applications in municipal, commercial and light industrial environments. They are available in 3HP to 15HP standard and explosion proof models with 2”, 2.5” and 3” discharge sizes.

BLADE grinder pumps are designed for long lasting dependability and ease of maintenance. Equipped with the Barnes Slicerator ™ radial cutting technology, plug-n-play “Quick Connect” cord and oil filled motor, BLADE grinder pumps are the perfect choice for demanding high head, high flow applications involving troublesome solids like plastics, ropes, diapers and cloth materials.

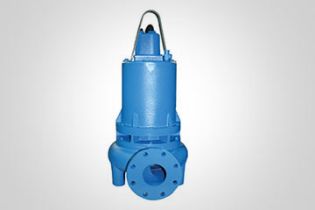

SEWAGE & WASTEWATER

• Models: 3SH, 6XSH, 3XSH, 8SH, 4SH, 8XSH, 4XSH, 10SH, 6SH, 10XSH
• Flows To: 5,500 g.pm.
• Heads To: 265 feet
• Discharge: 3-10 inches
• HP: 2-150
• Max Solids:
  2. 5″ on 3SH, 3XSH
  3. 3″ on 4SH, 4XSH, 6SH, 6XSH
  4. 4″ on 8SH, 8XSH, 10SH, 10XSH

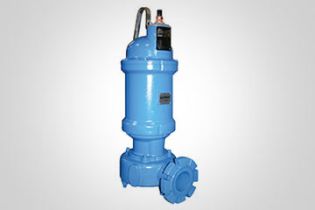

Barnes Solids Handling pump series are commonly found in applications involving sewage, effluent, wastewater processing and solids laden media. Available in both standard and explosion proof models. Barnes Solids Handling pumps are constructed of durable cast iron with oil-filled motors to provide a pump tough enough to meet almost any application need.

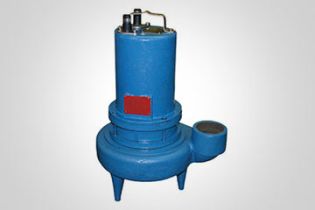

PLUMBING & WASTEWATER / SEWAGE

• Models: SE, SEV & SE-L
• Flows To: 430 g.p.m.
• Heads To: 95 feet
• Discharge: 1.5″, 2, & 3″
• HP Range: 0.4-3
• Voltage: 120, 240, 480, 600
• Max Solids: 1.5″- 2.5″

Barnes engineered sewage ejectors pumps are available in 1.5″,2″ & 3″ discharge, for residential and light commercial wastewater applications.

PLUMBING & WASTEWATER / SEWAGE

• Models: EH, EHV, STEP, SP, EP, BP
• Flows To: 130 g.p.m.
• Heads To: 110 feet
• Discharge: SP & EP 1 – 1/2 inches
• Others 2 inches
• HP: 0.33 – 1.5

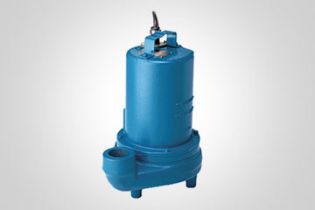

Effluent pumps are designed for handling dirty water in typical septic tank / effluent applications. High temperature models are available. Barnes effluent pumps are designed to handle most low and high head effluent applications.

DEWATERING & WASTEWATER / SEWAGE

• Models: 4SE
• Flows To: 960 g.p.m.
• Heads To: 126 feet
• Discharge: 3-4 inches
• HP: 3/4- 15HP

Barnes Solids Handling pump series are commonly found in applications involving sewage, effluent, wastewater processing and solids laden media. Available in both standard and explosion proof configurations. Barnes Solids Handling pumps are constructed of durable cast iron with oil-filled motors to provide a pump tough enough to meet almost any application need.

PLUMBING & WASTEWATER / SEWAGE

• Models: Simplex, Duplex
• Flows To: 400 g.p.m.
• Heads To: 160 feet
• Discharge: 1.25″, 2″, 3″
• HP: 1 – 7.5

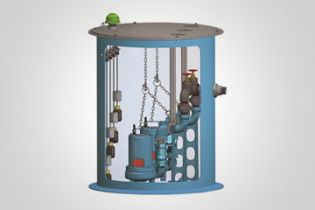

The Barnes Pipe Rail Fiberglass Lift Stations provide ease of pump installation and maintenance using the quick disconnect breakaway fitting and stainless steel guide rails. They offer a broad range of customized and standard basins with reliable and dependable 1 to 7.5 hp grinder pumps, effluent pumps, and sewage ejectors in simplex and duplex configurations. The basins come in a variety of sizes and offer options in pumps, control panels, and covers to suit every project’s exact needs.

Stations are available to order in custom configured and pre-configured standard options.

PRESSURE SEWER & WASTEWATER / SEWAGE

• Models: Simplex
• Flows To: 400 g.p.m.
• Heads To: 160 feet
• Discharge: 1.25″, 2″, 3″
• HP: 1 – 7.5, vertical discharge

The Barnes Hard Piped Fiberglass Lift Stations are an economical solution equipped with a true union ball valve for shallow stations where rail systems are not required. They offer a broad range of customized basins with reliable and dependable 1 to 7.5 hp grinder pumps, effluent pumps, and sewage ejectors in simplex configurations. The basins come in a variety of sizes and offer options in pumps, control panels, and covers to suit every project’s exact needs.

Stations are available to order in custom configured and pre-configured standard options.

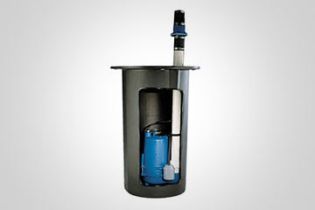

PLUMBING & WASTEWATER / SEWAGE

• Models: SE-SP, SEV-SP, SEV412-ASP1, SEV411-SP, SEV412-ASP
• SE411, SE421
• Flows To: 150 g.p.m.
• Heads To: 26 feet
• Discharge: 2 inches
• Voltage: 120 or 240
• Basin Sizes: 30 gallon, 41 gallon

Barnes Professional Plumbing Packaged Sewage Pump Systems are designed to handle wastes from lavatories, laundry tubs, floor drains, water closets, etc. and will push the water from below ground up to where normal drainage will handle it. Complete packages with basins and controls are available in many different sizes and configurations.

PLUMBING & WASTEWATER / SEWAGE

• Models: SP33, SHUR-Switch™ SU33
• Flows To: 50 g.pm.
• Heads To: 30 feet
• Discharge: 1.5 inches
• Voltage: 120

Laundry Tray Systems come complete, pre-assembled with pump, tank, discharge pipe and check valve. Systems can be used to remove water where gravity flow is not available without breaking concrete. Typical applications include laundry sinks, wet bars, dehumidifiers, water softeners and air conditioner condensation.

DEWATERING & WASTEWATER / SEWAGE

• Flows To: 5000 g.p.m
• Heads To: 200 feet
• Discharge: 3″, 4″, 6″, 8″, 10″
• HP: 3 to 150
• RPM: 1150, 1750, 870
• Solid Size: ≥ 3″
• Heat Treated Stainless Steel Chopper Blades

Demersible chopper pumps solve clogging with an innovative, unique, first-of-its-kind, patented chopping technology that slices even the most troublesome solids in waste stream. Demersible chopper pumps easily chop and pass solids like rags, mop heads, pillows, glass, organic material and literally any solid in the waste stream. Available in both standard and explosion proof designs, Demersible chopper pumps are offered from 3HP to 150HP in 3″,4″,6″,8″ and 10″ discharge sizes. White Iron (25% chrome) impellers are available as an option for abrasive applications involving sand, grit, gravel,

DEWATERING & WASTEWATER / SEWAGE

• Flows To: 5,700 g.p.m.
• Heads To: 265 feet
• Discharge: 3-10″
• HP: 2 – 150
• Voltage:
• 1 phase 208, 230, 220 for 3”
• 3 phase 208, 230, 460, 575 for 3”, 4″, 6″, 8″, 10″
• 3 phase 208, 230, 460 for 4”
• 3 phase 400 for 4”, 6”, 8”
• RPM: 870, 1150, 1750, or 3450
• Max Solids: 4″ (4″ on 8″ & 10″ discharge pumps and 2.5″ on 3″ discharge pumps)

Deming Demersible Solids Handling Non-Clog pumps are used in industrial wastewater applications and have a 4″ spherical solids handling capability to easily pass the solids encountered in most industrial environments. Deming Demersible flows to over 5,700 GPM and heads in excess of 265 feet. Deming Demersible Series is designed for continuous operation and is made with heavy duty materials of construction for simplified maintenance.

INDUSTRIAL & WASTEWATER / SEWAGE

• Models: 7100 Series
• Flows to: 5,000 g.p.m.
• Heads to: 240 feet
• Discharge: 2-8 inches

Deming horizontal and vertical dry pit pumps are compact in design to meet a wide range of service conditions. Solids handling pumps are available in 25 size configurations to meet specific requirements

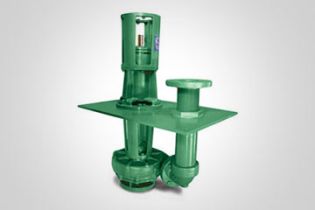

GENERAL INDUSTRIAL & WASTEWATER / SEWAGE

• Models: Series 5560
• Flows To: 4,000 g.p.m (Series 5560)
• Heads To: 240 feet (Series 5560)
• Discharge: 1 -10 inches (Series 5560)
• HP: 1 – 75 (Series 5560)
• RPM: 1150 or 1750

Deming Vertical Process pumps are space saving, always primed, with cantilever shaft, no submerged bearings, and broad capacity range.

PRESSURE SEWER & WASTEWATER

• Models: XGV, NGV, XGVHH, NGVHH
• Flows to 155 gpm
• Heads to 242 ft

BLADE Grinder pumps are the Barnes solution to high head high flow waste water grinding applications in municipal, commercial and light industrial environments. They are available in 3HP to 15HP standard and explosion proof models with 2”, 2.5” and 3” discharge sizes.

BLADE grinder pumps are designed for long lasting dependability and ease of maintenance. Equipped with the Barnes Slicerator ™ radial cutting technology, plug-n-play “Quick Connect” cord and oil filled motor, BLADE grinder pumps are the perfect choice for demanding high head, high flow applications involving troublesome solids like plastics, ropes, diapers and cloth materials.

PLUMBING & PRESSURE SEWER / GRINDERS

• Models: OGP2022CO, OGP2022AUE, OGVF2022M, PGPT2022
• Flows To: 56 g.p.m.
• Heads To: 200 feet
• Discharge: 1 – 1/4 inch NPT, female
• HP: 1 & 2
• Voltage: 240

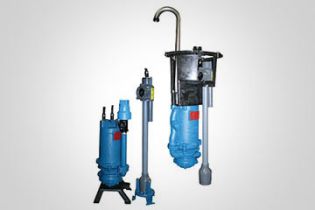

The reliability and longevity of centrifugal grinder pumps is available in an Upgrade Core package that fits directly into E/One® 200 and 2000 Series basins as well as most other low pressure sewer pump providers. The centrifugal technology out-performs Progressing Cavity technology.

PRESSURE SEWER & WASTEWATER / SEWAGE

• Models: Simplex
• Flows To: 400 g.p.m.
• Heads To: 160 feet
• Discharge: 1.25″, 2″, 3″
• HP: 1 – 7.5, vertical discharge

The Barnes Hard Piped Fiberglass Lift Stations are an economical solution equipped with a true union ball valve for shallow stations where rail systems are not required. They offer a broad range of customized basins with reliable and dependable 1 to 7.5 hp grinder pumps, effluent pumps, and sewage ejectors in simplex configurations. The basins come in a variety of sizes and offer options in pumps, control panels, and covers to suit every project’s exact needs.

Stations are available to order in custom configured and pre-configured standard options.

PLUMBING & PRESSURE SEWER / GRINDERS

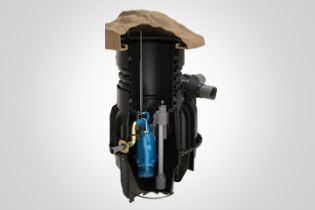

• Models: EcoTRAN
• Flows To: 56 g.p.m.
• Heads To: 200 feet
• Discharge: 1.25 inches

Barnes Pressure Sewer System offers a solution to the residential market for new or existing sewer needs. The EcoTRAN™ Grinder Pump System preserves groundwater ecology by collecting and grinding residential sewage in an underground basin and transmitting the waste under pressure to a remote private or municipal waste treatment plant. The unit is easily installed and maintained as well as aesthetically pleasing.

PRESSURE SEWER / GRINDERS

• Models: OGP
• Flows To: 28 g.p.m.
• Heads To: 200 feet
• Discharge: 1.25 – 2 inches
• HP: 2 – 7.5

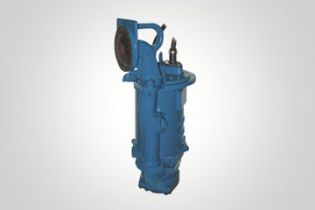

The Omni Grind Plus™ contains the high head capabilities of a progressive cavity pump and the long life of Barnes centrifugal grinder pumps, making the Omni Grind Plus™ a universal grinder pump for single family residences.

PLUMBING & PRESSURE SEWER / GRINDER

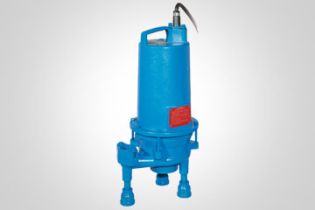

• Models: PGPP2022, PGPP2022A, PGPH2022, PGPH2022A
• HP: 230V
• Single Phase

Barnes PGP Grinder Pumps with exlusive Slicerator™ technology are designed to reduce sewage particles to a finely ground slurry.

PLUMBING & PRESSURE SEWER / GRINDER

• Models: PGPT1022
• HP: 1
• Voltage: 240
• Single Phase
• Cord Length: 20Ft. Quick Connect

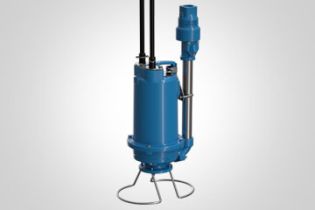

Residential Grinder Pump designed to reduce domestic sewage to finely ground slurry using exclusive Slicerator™ cutting system backed by 40 years of excellence.

PRESSURE SEWER / GRINDER

• Models: OGV
• Flows To: 58 g.p.m.
• Heads To: 126 feet
• Discharge: 1.25 inches
• HP: 2

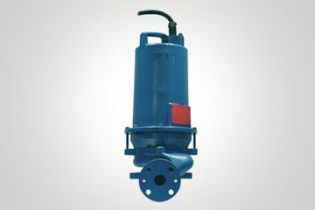

Barnes OGV Grinder Pumps with the exlusive Slicerator™ technology are designed to reduce sewage particles to a finely ground slurry.

PLUMBING & PRESSURE SEWER / GRINDER

• Model: SGV
• Flows To: 140 g.p.m.
• Heads To: 160 feet
• Discharge: 1.25″ Vertical Bolt-on Flange, 2″ NPT Vertical
• HP: 2HP, 3HP, 5HP, 7.5HP

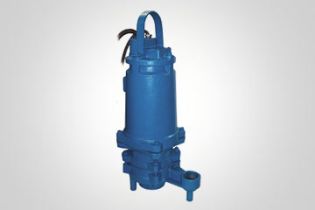

Barnes SGV Grinder Pumps provide broad design flexibility with a choice of basin configurations. The UltraCAP II™ dry well level control system options and a variety of control panels and accessories allow system customization. Exclusive non-fouling controls eliminate routine, maintenance service calls.

DEWATERING & PLUMBING

• Models: SU33
• Flows To: 45 g.p.m.
• Heads To: 21 feet
• Discharge: 1.5 inches NPT, female, vertical
• Voltage/ Phase: 120V, 1 phase, 60HZ
• HP: 0.33
• RPM: 3450

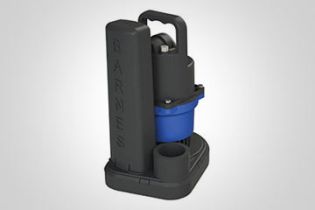

Barnes SHUR-Switch™ sump pumps feature low cost, high performance benefits from a rugged, heavy duty design. All of our sump pumps feature dual ball bearing design and thermoplastic impellers. Barnes SU33 sump pumps feature an innovative magnetic vertical float switch under a protective cover to prevent hang ups. All Barnes sump pumps are robustly designed for long operational life and dependable service. They are further enhanced by a stainless steel shaft and heavy duty seal. Barnes sump pumps save time and replacement costs because they are interchangeable with competing sump pump brands.

DEWATERING & PLUMBING

• Models: BT12 & BT50
• Flows To: 21 g.p.m.
• Heads To: 127′ TDH
• HP: 1/12 & 1/2
• Voltage: 120V
• RPM: 3,450

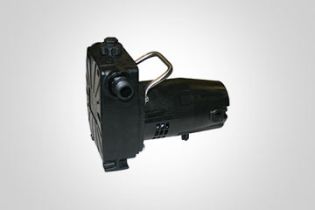

Barnes Portable Transfer pumps are designed to handle a wide variety of pumping applications . Barnes Transfer pumps are constructed of durable materials and include a garden hose attachment for convenient use.

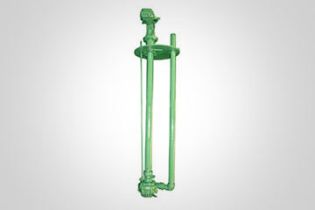

DEWATERING & INDUSTRIAL

• Column or Non-Clog
• Models: Deming 4500, 4507-4508, 7560
• Flows To: 3,600 g.p.m.
• Heads To: 160 feet
• Discharge: 1.5-8 inches
• HP: 0.25-100
• RPM: 1150, 1750, 3450
• Length: Sump depth 2-22 feet

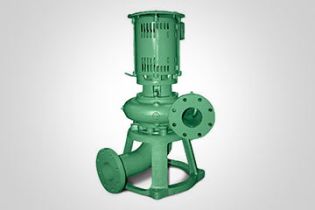

Deming Non- Clog Vertical Column Sump Pumps are designed to handle various fluids from drainage water or any liquid waste containing small, non-fibrous solids to larger industrial processes. Their advanced design provides trouble-free service and low-cost operation.

CLEAN WATER & GENERAL INDUSTRIAL

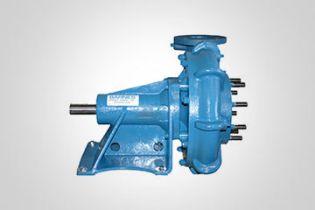

• Models: HCU Series
• Flows To: 700 g.p.m.
• Heads To: 360 feet
• Discharge: 2-3 inches
• HP: 5-100
• RPM: 1750 or 3450

Barnes versatile end-suction pumps are heavy duty, general purpose centrifugal pumps with heavy wall castings suitable for industrial and marine applications. Applications include condenser, gear cooling, general water circulation, fire fighting, and washdown. High efficiencies, robust case construction of cast iron, and impeller construction of bronze makes these pumps an ideal selection for applications that require easy-to-maintain, reliable, long lasting pumps.

CLEAN WATER & GENERAL INDUSTRIAL

• Models: ICU, CCE
• Flows To: 400 gp.m.
• Heads To: 190 feet
• HP: 1 1/2 – 15
• Discharge: 1-6 inches

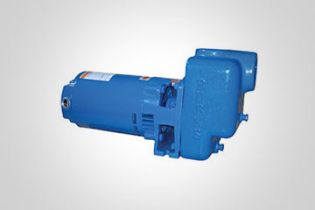

Barnes self-priming pumps are designed to meet a broad range of general and special industrial applications. Base mounted pump models are available with motors up to 150 hp, while closed-coupled pump models are available from 3 to 25 hp.

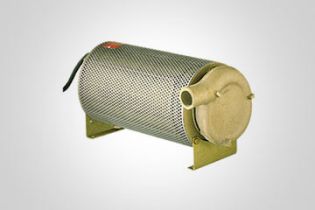

WATER FEATURE

• Models: SFU, SF, 3SF-HD, 3SF-L
• Flows To: 120 g.p.m.
• Heads To: 55 feet
• HP: .33 – 1
• Voltage: 120, 240
• Discharge: SFU – 1.75 inch hose
• SF – 2 inch NPT, female

Barnes UL listed fountain pumps are the market leader in decorative water applications. All bronze and stainless steel construction, 1/3 to 1 HP units available in both 115V and 230V single phase.

GENERAL INDUSTRIAL & HVAC

• Models: 3000 and 4000 Series
• Flows to: 4,000 g.p.m.
• Heads to: 780 feet
• Discharge: 1-6 inches
• HP: .33-60
• RPM: 1750 or 3450
• HZ: 50 HZ Models Available

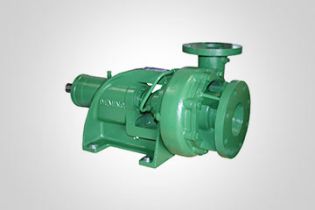

Deming versatile end-suction pumps are heavy duty, general purpose centrifugal pumps with heavy wall castings suitable for many commercial, industrial and municipal needs. Applications include condenser, chilled, and hot water systems in HVAC, process secondary pumping, and municipal drinking water. High efficiencies, robust case construction of cast iron, and impeller construction of bronze makes these pumps an ideal selection for applications that require easy-to-maintain, reliable, long lasting pumps.

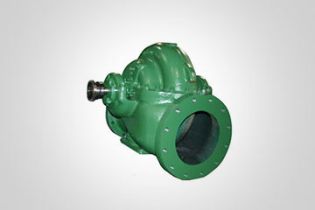

CLEAN WATER & HVAC

• Models: 5060 Single-Stage Series
• Flows To: 7,000 g.p.m.
• Heads To: 500 feet
• Discharge: 1.5-12 inches

Deming horizontal split-case single stage, general purpose split case pumps are designed for continuous service handling of both hot and cold fluids.
