MH Flex Connector
Flex Connectors are primarily designed for installation in pump suction and discharge lines, to prevent damage to equipment caused by vibration and pipe misalignment. The flex connectors are hose assemblies manufactured from braided corrugated metal hose and are available in bronze, stainless steel and Monel.
End fittings include flanges, MPT and sweat. Working pressures range from full vacuum through 12,000 psi. Temperatures up to 1500 °F. Standard sizes range from 1/4 in through 18 in Inner Diameter. A variety of size, length and end fitting configurations are available. Standard and special assemblies are available and built to customer specifications.
*Made in the USA
SECF Flanged Connector
Style SECF Stainless Steel Braided Pump Connectors are manufactured using 300 alloy stainless hose and braid and a steel plate with 150# drilling as the flange. Other end fittings, including 300# flanges and grooved nipple ends, are available. Working pressures up to 315 psi at 250°F. Standard and special lengths are available. Standard sizes range from 2" through 16" I.D.
*Made in the USA
SECM Braided Connector
Style SETC Tie Rod Bellows Connectors are designed to protect critical mechanical equipment and reduce noise by absorbing and minimizing the forces and stress within piping systems. The all metal construction of these units, consisting of stainless steel bellows, carbon steel flanges and carbon steel tie rods, allows for high pressure and temperature service. Standard sizes range from 2" through 16" I.D. Working pressures are rated at 150 psi at 500°F.
*Made in the USA

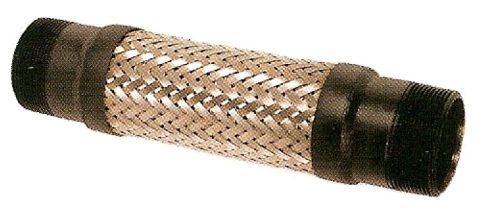

SECM Braided Connector
Style SECM Stainless Steel Braided Pump Connectors are manufactured using 300 alloy stainless hose and braid and a sch. 40 carbon steel nipple with male threaded ends. Other end fittings, including 300# flanges or grooved nipple ends, are available. Working pressures up to 1125 psi at 250°F. Standard and special lengths are available. Standard sizes range from 1/2" through 4" I.D.*
*Made in the USA
SECC-UL Braided Bronze Connector
Style SECC-UL Vibration Eliminators are generally used for absorbing vibration and noise in refrigeration and air conditioning systems. Manufactured of bronze corrugated hose and braid. End fittings are copper female sweats. Working pressures up to 1000 psi. Maximum temperature is 450°F. Standard sizes range from 1/4" through 3" I.D. All style SECC-UL vibration eliminators are recognized by Underwriters Laboratories.
*Made in the USA

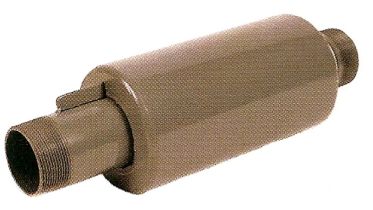

SESC/SENC Expansion Compensator
Style SEBC and Style SESC Expansion Compensators are generally used to absorb pipe motion in small diameter systems. Manufactured of a stainless steel bellows with steel shroud. Maximum working pressure is 200 psi. Types SEBC, use copper female tube ends or copper male x female tube ends. Standard pipe sizes range from 3/4" to 3". Types SESC, come standard with carbon steel MPT fittings. Other weld ends, FPT and flanges are available, upon request. Standard pipe sizes range from 3/4" through 4".
*Made in the USA
SEMSD Double Sphere Rubber Connector
Style SEMSD Flex-Rubber Expansion Joints are generally used in heating and air conditioning systems, for hot and cold water service, and for mild chemicals and oils. Manufactured using double sphere neoprene tube and cover. End fittings are 150# Zinc plated carbon steel flanges, with a steel bead flange retainer. No separate retaining rings are ever required. Working pressures up to 225 psi. Temperatures up to 220°F. Standard sizes range from 2" through 12" I.D.
*Made in the USA

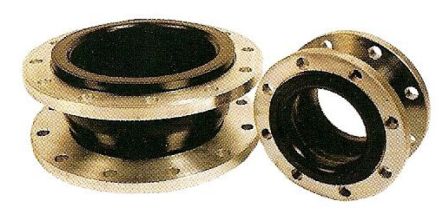

SEMS Single Sphere Rubber Connector
Style SEMS Flex-Rubber Expansion Joints are generally used in heating and air conditioning systems, for hot and cold water service, and for mild chemicals and oils. Manufactured using neoprene tube and cover, with a fully molded single spherical design. End fittings are 150# Zinc plated carbon steel rotating flanges, with a steel bead flange retainer. No separate retaining rings are ever required. Working pressures up to 220 psi. Temperature range is 14°F. to 230°F. Standard sizes range from 1 1/2" through 20" I.D.
*Made in the USA
