Niles Steel Tank

210 – 1000 Gallons

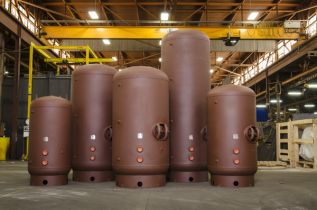

Niles Steel Tank maintains a large selection of standard Large volume hot water storage tanks in inventory which are available for quick ship. Inventory gallon sizes range from 210 gallon up to 1000 gallons. All tanks are vertical, glass lined with oxide primer. Refer to our submittal pages for details on tank fitting configuration. Manways are required on all tanks OVER 36” diameter and our pricing reflects that requirement. Manways are optional on 36” diameter and below. All bare vertical tanks come standard with lifting lugs. Each tank is hydro-tested and independently inspected as ASME requlations require. Need more than what is available in our standard sizes? We can build to your specifications. Fitting changes, flanges, linings and exterior finishes, high pressures are all available but current lead times will apply. Please visit our Get A Quote page and tell us what you’re looking for. When ordering or requesting a quotation, please let us know the number of fittings or nozzles, operating pressure and temperature. If needed, legs can be substituted for skirts. Please refer to our options page for information on our Powered Anode system and other items.

175 - 1689 Gallons

Our jacketed and insulated tanks come standard with 2″ of spray foam insulation which meets ASHRAE 90.1b (2010 version) requirements.  Manways are standard on all tanks over 36″ diameter and are optional on 36″ diameter and below.  Optional opening/ panels can be ordered to gain access to the existing lifting lugs.  And, every tank is mounted on 2″ fork-lift rails for easy lifting.

Niles Steel Tanks sprayed-on rigid insulation with acrylic topcoat exceeds ASHREE 90.1b requirements with 2.25” of high density polyurethane foam with an R value or R-16. The spray-on foam meets California Title 24 requirements. Niles spray-on foam insulation is a class 1 foam with less than a 25‑ASTM spread rating suitable for boiler room applications. The 100% acrylic topcoat is formulated for outdoor applications and is designed to withstand extreme weather and a full range of environmental conditions. The 2 component polyurethane foam is applied at ambient temperatures, directly to the vessel and rises to the desired thickness. The acrylic topcoat is applied from a high pressure gun once the foam has set. The acrylic topcoat is UV reflective which protects the spray-on foam from deterioration from the sun.

 Tank construction shall be 150 psi maximum allowable working pressure and be ASME stamped and National Board listed. All tanks are to be lined with Ultonium superior glass lining, ­red at 1600 F (871 C) by a process which provides a molecular interchange of glass and steel. Electric Power Water Heater Series shall include the following standard features: magnetic contactors with immersion thermostats, digital Temperature display, internal fusing for control and load circuits, low-watt density Incoloy sheath elements, magnesium anode rods, ASME rated temperature and pressure relief valve, terminal block wiring, 180 F (82 C) water temperature approval, 3-year limited warranty.

Niles Steel Tank Hot Water Generators are equipped with 2 or 4 pass, single or double wall construction, U-bend heat exchangers. It can be operated by passing either steam or hot water through the coil to heat the tank contents. Large heating capacity in small spaces makes this heater particularly suitable for boiler rooms with low head room. Hot Water Generators come in vertical and horizontal configurations, bare, topcoated or jacketed and insulated. Select from our standard design or customize as needed. All tank fittings can be NPT, flanged or grooved end. Most generators are porcelain enamel (glass) or epoxy lined for potable water applications up to 180°F & 160 PSI max. For higher temperatures or special applications NST offers 316L stainless steel tank construction. These systems are designed primarily for natural convection in the tank. Heat exchangers are built with your choice of copper, stainless or copper nickel tubes. All tubesheets are 304 stainless steel unless requested otherwise.

The Niles Power Plate water heating system is a performance driven water heating package that comes with your choice of water storage tanks up to 2,500 gallons. The unique Power Plate heat exchanger design provides high rates of heat transfer requiring less surface area than conventional shell and tube heat exchangers. Couple that performance with our Ultonium lined or stainless steel alloy storage tanks for the ultimate heating domestic water delivery package.

Chilled water bu­ffer tanks are essential components in modern day chiller systems. NST buff­er tanks are designed to increase the system’s capacity so water temperatures stabilize within the chiller manufacturers recommendations. When the cooling systems piping capacity is under sized, compressors will short cycle and temperature control is harder to maintain within the building. Chiller manufacturers recommend between 3 to 10 gallons per ton of nominal cooling capacity, in the piping system. Depending on the level of accuracy of temperature control, higher volumes may be required.

The Niles Steel Tank Hydraulic Separator is designed to help reduce short cycling of a boiler system and separate building and boiler circulation. The NST Hydraulic Separator uses stored boiler water to buffer the system load when the boiler is producing more BTU’s than what the building can handle. When the building has a minimal demand, it pulls from the tank allowing the boiler to “rest”. The Hydraulic Separator is piped so the building flow is separate from the boiler flow, allowing independent circulation.

Thermal Expansion tanks are used to help eliminate the expansion forces caused by heating and cooling of pressurized systems water. The tank air pressure must be field adjusted for proper system operation.  It is important to properly charge the tank with enough pressure which equals the cold water supply pressure, prior to filling the system.  Failure to properly pressurize the tank will cause the cold supply water to expand the bladder, greatly reduce the expansion capabilities.  The heavy duty butyl rubber bladder keeps the system water separate from the tank, eliminating tank corrosion.  The Niles Steel Tank Expansion tanks are designed for commercial heating applications and potable water applications.   As the water is heated, it expands into the bladder and pushes against the air cushion.  As the system cools, the pressure in the tank pushes the system water back into the piping, maintaining system pressure.

There really isn’t too much we haven’t built. Although we list just a few items, we will build pretty much anything you need, providing it’s within our lifting and welding capabilities. Our shop is set-up to produce multiple tanks of the same design as well as one of a kind vessels. Just because you don’t see it listed, doesn’t mean we won’t build it. We service almost every industry except breathable air tanks. If you have an existing tank design that you need us to quote, or you need a replacement tank to match existing piping, we’ll be glad to help.  Our engineering team can help with any aspect of your project. We have experience with chillers, accumulators, steam generation, pump traps, piping, water filtration, surge tanks and many other industries and systems. High pressure and unique designs are where we excel. If your project requires an interior lining, we have the expertise to help determine which lining would best suit your applications need. We offer, glass and epoxy linings done at our facility.

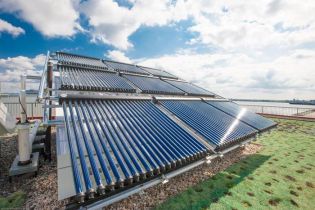

Niles Steel Tank offers a full line of both commercial and residential solar tanks. Approved in many systems with OG300 certification, the Niles solar tanks are already to go.  We offer solar tanks with back-up systems for electric (2 elements), boiler (hot water) or under-fired gas models to choose from.  We also have a full line of solar tanks with no internal coil but have 2) electric heating elements as back up.

Our larger commercial custom built solar tanks have multiple internal coils designed specifically for slow gpm which is ideal for solar pump rates. These large solar tanks are custom built precisely for your project and can be ordered with our R-16 spray-on foam insulation.  By introducing multiple coils into the tank, you can add more array’s on the roof to maximize each coils heating potential.  Perfect for applications where faster recovery times are needed.

• 2″ Non-CFC Foam Insulation-Covers the sides and top of tank to save energy by retarding loss of heat.
• Factory Installed Nipples-For longer water heater life. Easier installation.
• Fully Automatic Controls-immersed Honeywell aquastat.
• Immersed Adjustable Honeywell Aquastat-Fast acting immersion aquastat for automatic temperature control (adjustable from 80°F to 160°F).
• Ultonium® Lining-Niles Steel Tank water heater tanks are protected from the corrosive effects of hot water by an exclusive ceramic porcelain-like coating. The Niles Steel Tank high silica Ultonium® lining provides a tough interior surface for our hot water tanks.
• Factory Installed Sparge Tube System-Cold inlet sediment reduction device helps to minimize sediment build up in tank. Increases first hour delivery of hot water while minimizing temperature build up at top of tank.
• Heat Exchanger-Single wall 1½” glass coated (Ultonium®) steel.
• Supply and Return Connections-the 1″ NPT female connections are located on the front for both the boiler supply and boiler return.
• Stand-by Heat Loss-less than ½°F per hour.
• Brass Drain Valve.
• T&P Relief Valve Installed-All models feature opening on side of tank.
• 5 Year limited Warranty on tank and heat exchanger.

• Stainless Steel Heat Exchanger – Single-wall 1″ O.D. stainless steel coil. Maximum supply temperature from the boiler must not exceed 240°F.
• Stainless Steel Tank and Heat Exchanger – Made from chromium molybdenum – titanium ferritic 444 stainless steel alloy.
• Immersed Adjustable Honeywell Aquastat – Fast acting immersion aquastat for automatic temperature control (adjustable from 80°F to 160°F).
• Supply and Return Connections – 1″ NPT female connections are located on the front for both the boiler supply and boiler return.
• Supply and Return Connections – 1″ NPT female connections are located on the front for both the boiler collector supply and return.
• 2″ Non-CFC Foam Insulation – Covers the side and top of tank, reducing the amount of heat loss. This results in less energy consumption, improved operation efficiencies and jacket rigidity.
• Potable Water Connections – 3/4″ NPT factory installed dielectric fittings extend water heater life and eases installation (1″ NPT on NSS-120-L).
• T&P Relief Valve – Included.
• Steel Jacket
• Brass Drain/Return Valve.
• 5 Year Limited Warranty on tank and heat exchanger.
• AHRI Certified – These water heaters are rated by the Air-Conditioning, Heating and Refrigeration institute to provide accurate performance data within the standards of the certification. This provides a recognized standard for proper comparison of hydronic appliances.

• Heat Exchanger-Double wall 1½” O.D. glass coated (Ultonium®) steel coil. The positive leak path between the two walls of the coil ensures the potable water will stay separate from the hydronic fluid.
• Low Heat Exchanger Head Loss-Up to 10 GPM flow, with less than 5 ft. of head loss. Greatly reduces the required pump size for heat exchange.
• Factory Installed Sparge Tube System-Cold water inlet sediment reducing device helps to minimize sediment build up in tank. Increases first hour delivery of hot water while minimizing temperature build up in tank.
• Ultonium® Lining-Niles Steel Tank water heater tanks are protected from the corrosive effects of hot water by an exclusive ceramic porcelain-like coating. The Niles Steel Tank high silica Ultonium® lining provides a tough interior surface for our hot water tanks.
• Fully Automatic Controls-Fast acting surface-mount thermostat for automatic temperature control.
• Supply and Return Connections-The 3/4″ NPT female connections are located on the front for both the boiler supply and boiler return.
• 2″ Non-CFC Foam Insulation-Covers the sides and top of tank to save energy by retarding loss of heat. Also increases jacket rigidity.
• Water Connections-3/4″ NPT factory installed true dielectric fittings extend water heater life and eases installation.
• Two Protective Aluminum Rods-Provide added protection against corrosion for long trouble-free service.
• Stand-by Heat Loss-Less than 1/2°F per hour (ASHRAE 90.1b current standard).
• Steel Tank-Heavy gauge steel automatically formed, rolled and welded to assure a continuous seam for glass lining.
• T&P Relief Valve Included-All models feature opening on side of tank.
• Brass Drain Valve.
• Limited Lifetime Warranty on tank and heat exchanger.

• Heat Exchanger-Single-Wall 1½” O.D. glass coated (Ultonium®) carbon steel coil. The coil has a heat transfer area of 14.2 sq. ft. and a stored water volume of 2.7 Gal. Maximum supply temperature from the boiler must not exceed 250°F.
• Factory Installed Sparge Tube System-Cold water inlet sediment reducing device helps prevent sediment build up in tank. Increases first hour delivery of hot water while minimizing temperature build up in tank.
• Ultonium® Lining-Niles Steel Tank water heater tanks are protected from the corrosive effects of hot water by an exclusive ceramic porcelain-like coating. The Niles Steel Tank high silica Ultonium® lining provides a tough interior surface for our hot water tanks.
• Immersed Adjustable Honeywell Aquastat-Fast acting immersion aquastat for automatic temperature control (adjustable from 80°F to 160°F)
• Supply and Return Connections-1″ NPT female connections are located on the front for both the boiler collector supply and return.
• 2″ Non-CFC Foam Insulation-Covers the side and top of tank, reducing the amount of heat loss. This results in less energy consumption, improved operation efficiencies and jacket rigidity.
• Potable Water Connections-3/4″ NPT factory installed true dielectric fittings extend water heater life and eases installation.
• Three Protective Aluminum Anode Rods-Provide added protection against corrosion for long trouble-free service.
• Steel Tank-Heavy gauge steel automatically formed, rolled and welded to assure a continuous seam for glass lining.
• T&P Relief Valve-Included.
• Brass Drain Valve.
• Limited Lifetime Warranty on tank and heat exchanger.
• I=B=R Certified-These water heaters are rated by the Institute of Boiler and Radiation Manufacturers (I=B=R) to provide accurate performance data within the standards of the certification. The I=B=R rating is issued by the Hydronics Institute Division of GAMA and provide a recognized standard for proper comparison of hydronic appliances.
