Raypak

For over 70 years, Raypak has been the world’s leading manufacturer of copper finned boilers and heaters. From a modest beginning in 1947 in founder Al Whittel’s garage in Southern California, Raypak now supplies equipment all over the world from its manufacturing facility in Oxnard, California, and its licensee in England. As a result of the growth generated by the market acceptance of the copper fin design, the factory was moved to Westlake Village, California, in 1970. After two major expansions over the next thirty years, Raypak outgrew the 151,000 square foot Westlake plant. In 2000 Raypak’s primary manufacturing facility was relocated to a completely new 235,000 square foot building in Oxnard, California, its current headquarters. Raypak expects that the market acceptance of new product designs will accelerate the growth rate that the company has experienced during the last ten years. The state-of- the-art Oxnard facility prepares the company to meet these growth demands. Raypak’s design goals are and have always been high quality, reliability and energy efficiency. Adhering to these basics is the reason the reputation of the company is held in such high regard by design build consultants, specifying engineers, distributors, contractors and homeowners. Diversified Fluid Controls is the Exclusive Representative for Raypak Water Heaters, Boilers and Commercial Pool Heaters in South Florida.



H: Hydronic Boiler

WH: Water Heater

P: Pool Heater

High Efficiency

Taco Hydronic Pumps

Xvers L

399 MBTUH - 850 MBTUH

H: 97.2-98% Efficiency

Stainless Steel Fire-Tube



The XVers L, our newest hydronic boiler is built to automatically assess the temperature, and adjust to make sure your environment is controlled and comfortable. It’s engineered for performance, efficiency and with Raymote access, it allows you to stay connected and informed anywhere you are.

The XVers L is available in sizes from 399 to 850 MBTUH which expands our reliable XVers family of boilers. Feel secure with Raypak, and know that you’re keeping your buildings, schools, multi-family housing, hospitals and gyms warm and energy efficient with the XVers L line of hydronic boilers.

request more information

Taco AC Air Separator

XVers

855 MBTUH - 3 MMBTUH

H: 95.5-96.2% Efficiency

Stainless Steel Fire-Tube



The XVers vertical fire-tube modulating condensing stainless steel boiler, in sizes 855 to 3000 MBTU. The XVers boiler is now available with the HO2T system. It features built-in, automatic system protection that extends the life of your XVers by maintaining the optimum fuel to air ratio. The XVers provides extreme versatility for boiler applications, with cutting-edge control technology, broad installation flexibility, easy commissioning, optimum seasonal efficiency, and long-term reliability.

request more information

Raypak Xtherm Condensing Boiler

XTherm

1 MMBTUH - 4 MMBTUH

H: 96% Efficiency

WH: 97% Efficiency

P: 97% Efficiency

Hybrid: coper or cupronickel finned water-tube with secondary stainless steel condensing water-tube



The proven XTherm - vertical modulating condensing boiler, water heater or pool heater, in sizes from 1005 to 4000 MBTU. XTherm combines time-honored high-recovery copper fin technology with cutting-edge control and combustion advancements. The installer can enjoy broad installation flexibility, easy commissioning, and long-term reliability.

request more information


Raypak XFIIRE Boiler

XFIIRE

300 MBTUH - 1 MMBTUH

H: 96-96.5% Efficiency

WH: 96-96.5% Efficiency

Stainless Steel Water-Tube



XFIIRETM is built with stainless steel water-tube construction, versatile design and adaptive controls on an intuitive VERSA IC® touchscreen display. The XFIIRE is engineered for performance, efficiency and with RaymoteTM access to keep you connected and informed.* Meet the demand of daily life with the XFIIRE hydronic or domestic hot water heater for buildings, schools, multi-family housing, gyms, and more.

request more information

Raypak XPak FT Wall Mounted Boiler

XPak FT

85 MBTUH - 399 MBTUH

H: 94.8-96% Efficiency

Stainless Steel Fire-Tube Wall Mounted



Raypak is pleased to offer a wall mount, modulating, fire-tube heating boiler for commercial and residential. All XPakFT® models operate with extremely low NOx emissions, turndown of up to 10:1 and when mounted have virtually no installed footprint providing all the flexibility you’ve come to expect from Raypak

request more information


Mid Efficiency

Raypak MVB Near Condensing Boiler

MVB

500 MBTUH - 4 MMBTUH

H: 84-86.2% Efficiency

WH: 83-87% Efficiency

P: 83-83.3% Efficiency

Copper or cupronickel finned water tube



Time-honored technologies unite with cutting-edge advancements in Raypak’s MVB modulating vertical boiler. Small space is no longer a problem, and our compact design fits through a 32” door opening to make it the perfect choice for those hard-to-reach retrofit projects.-

request more information

Raypak Hi Delta Hydronic Boiler

Hi Delta

300 MBTUH - 2.3 MMBTUH

H: 84% Efficiency

WH: 83.1- 85% Efficiency

P: 83-83.3% Efficiency

Copper or cupronickel finned water tube



Raypak's family of Hi Delta Hydronic Boilers, water heaters, and pool heaters, 302C-902C, feature 84% efficiency, 2-stage operation, and is available in natural gas or propane variants.

request more information

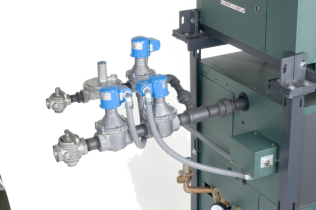

Raypak Hi Delta FlexGas

Hi Delta FlexGas

300 MBTUH - 2.3 MMBTUH

H: 84% Efficiency

WH: 83.1- 85% Efficiency

P: 83-83.3% Efficiency

Copper or cupronickel finned water tube



Although it is possible to convert almost any Hi Delta® unit from natural gas to propane, it does take time. The patented "FlexGas®" system allows the unit to be plumbed for BOTH fuels, switching from operation from one fuel to the other with the turn of a key - without shutting down the unit at all!

request more information

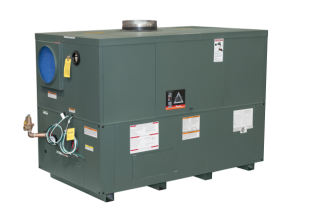

Raypak Delta Limited

Delta Limited

400 MBTUH - 2.3 MMBTUH

H: 84% Efficiency

WH: 83.1 - 85% Efficiency

Copper finned water tube



Delta Limited® series is based on the same basic design as the Hi Delta® product line. A reduced set of features and options provides rock-solid heating at reduced cost.

request more information

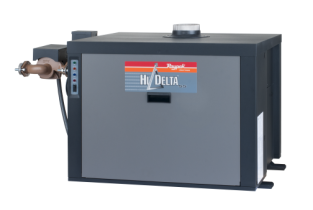

Raypak Hi Delta SS Hydronic Boiler

Hi Delta SS

100 MBTUH - 399 MBTUH

H: 84 - 85% Efficiency

WH: 85% Efficiency

Copper finned water tube



Raypak's family of Hi Delta ss Hydronic Boilers, HD101-HD401, feature copper finned tube heat exchangers with cast-iron headers, with all indoor and outdoor models certified.

request more information


Atmospheric

Raypak Raytherm Hydronic Boiler

Raytherm

511 MBTUH - 4 MMBTUH

H: 80 - 82% Efficiency

WH: 82% Efficiency

P: 82% Efficiency

Copper or cupronickel finned water tube



Raypak's family of Raytherm Hydronic Boilers, 926-1758, feature 82% efficiency, cast-iron headers with copper finned tube heat exchangers, and stainless steel burners.

request more information

Raypak Raytherm Hydronic Boiler

Raytherm Residential

42 MBTUH - 399 MMBTUH

H: 82 - 84% Efficiency

WH: 82% Efficiency

Copper finned water tube



Raypak's family of Raytherm Hydronic Boilers, 926-1758, feature 82% efficiency, cast-iron headers with copper finned tube heat exchangers, and stainless steel burners.

request more information



Tanks

Raypak Stainless Steel Indirect Heater

Stainless Steel Indirect Heater

26 - 111 Gallons

444 Stainless Steel Construction

444 Stainless Steel Coil Heat Exchanger



The Raypak indirect water heater uses heat from a boiler to heat domestic water. The heat is transferred to the water by a coil heat exchanger inside of the tank.

request more information

Raypak Stainless Steel Storage Tank

Stainless Steel Storage Tank

110 Gallons

444 Stainless Steel Construction

Indoor or outdoor Installation



Raypak's family of Hi Delta Hydronic Boilers, water heaters, and pool heaters, 302C-902C, feature 84% efficiency, 2-stage operation, and is available in natural gas or propane variants.

request more information

Raypak DHW Tanks Stock and Custom

DHW Tanks - Stock and Custom

80 - 2590 Gallons

ASME and Non-ASME Vertical and Horizontal Configuration



Storage tanks are required in conjunction with WH water heaters.  The heater provides rapid heating of a small volume of water; the tank provides a storage medium with enough capacity to handle short-term loads.  This separation of functions provides extremely fast, flexible recovery.

request more information


Raypak Stainless Steel Indirect Heater

ASME Hydronic Buffer Tanks

40 - 139 Gallons

Vertical and Horizontal Configuration

Low-mass high-recovery boilers such as Raypak's require access to a certain minimum water volume in order to avoid a sharp rise in temperature. If the system water volume is under this limit, a buffer tank to add the missing volume can be a simple solution.

request more information
